Motor FAC I-220 complete, 230 V / 1-phase for V-belt
2,860 SEK per pcs
- Secure payment by card
- E-mail us if you have any questions!
Description
Article no.: 93-200010

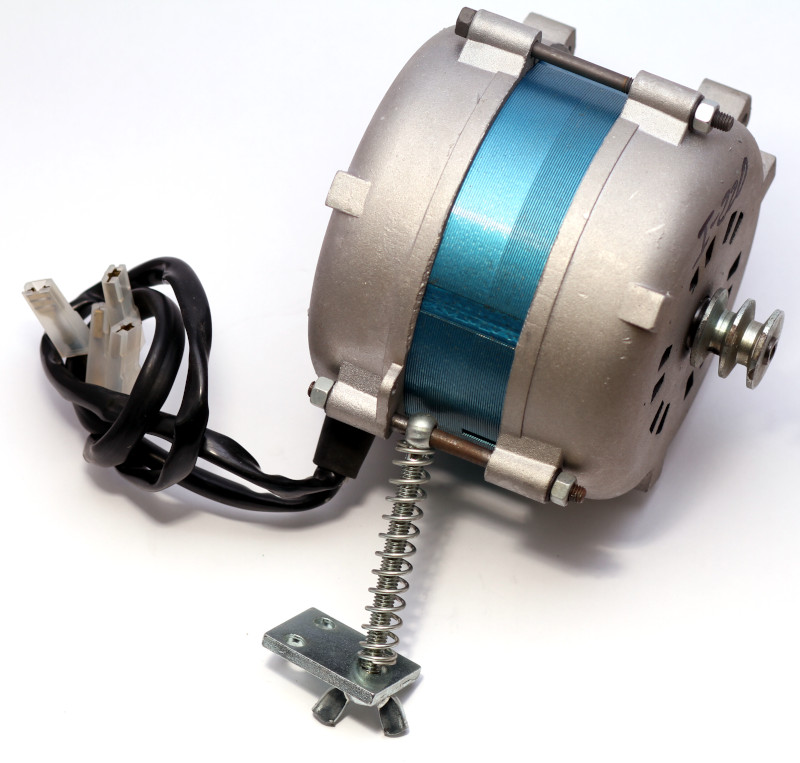

Motor for slicing machine FAC I-220 complete. 230 V / 1-phase for V-belt.
Total height (incl shaft/drive): 120 mm
Diam: 138 (105) mm
Motor mounting shaft: 6 mm
Distance between mounting blocks: 40 mm
Width of mounting block: 14 mm
V-belt pulley diam: 23/12.4 mm
V-belt pulley length: 19 mm
Spring bracket shaft: M6 x 66 mm (total length 79 mm)
Spring bracket plate: 37x25 mm
2 fixing holes diam: 6 mm
Hole distance cc: 15 mm
2 cables length: approx. 250/340 mm (with 4 connections)
Total height (incl shaft/drive): 120 mm
Diam: 138 (105) mm
Motor mounting shaft: 6 mm
Distance between mounting blocks: 40 mm
Width of mounting block: 14 mm
V-belt pulley diam: 23/12.4 mm
V-belt pulley length: 19 mm
Spring bracket shaft: M6 x 66 mm (total length 79 mm)
Spring bracket plate: 37x25 mm
2 fixing holes diam: 6 mm
Hole distance cc: 15 mm
2 cables length: approx. 250/340 mm (with 4 connections)
