Bit holder FAC I-220 with long arm/large handle
1,505 SEK per pcs
- Secure payment by card
- E-mail us if you have any questions!
Description
Article no.: 93-200220

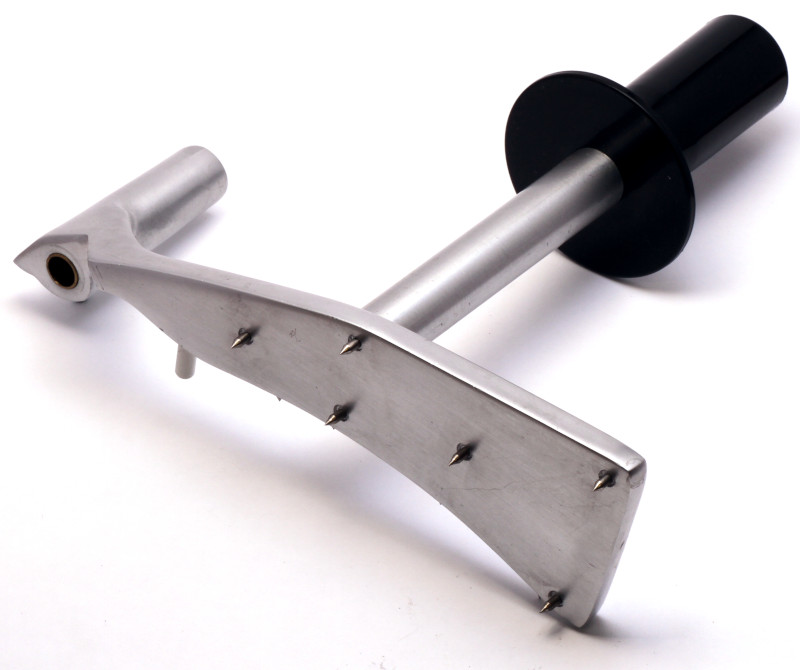

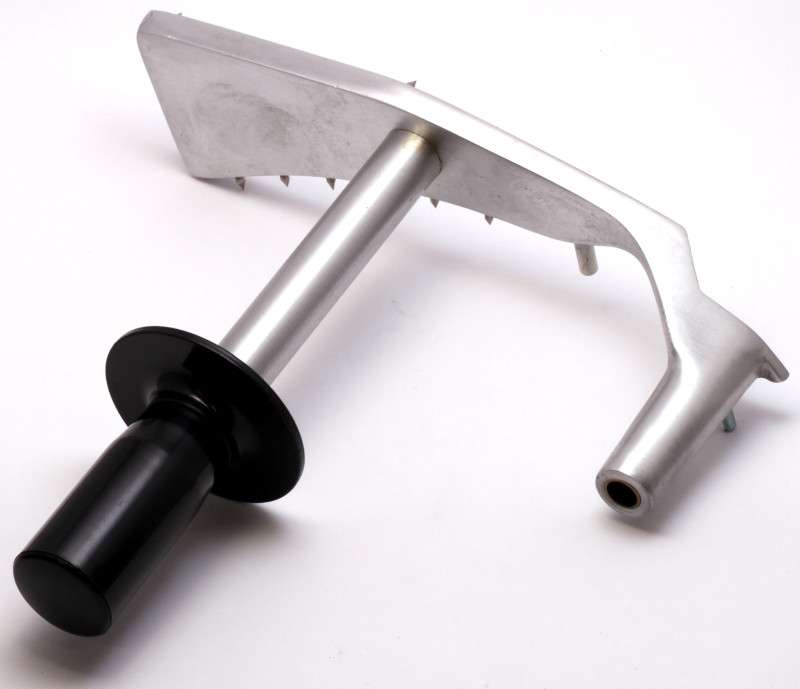

Bit holder for slicing machine FAC I-220 with long arm and large handle.
Total dimensions (H x W x D): 70 x 220 x 240 mm
Hole for shaft: 10 mm (with two sliding bushes)
Width "shaft mount": 70 mm
Bit holder plate only: approx. 190 x 65 mm (overall dimensions excl. tags)
White plastic pin for rest position - front: 145 mm
Height plate excl. pins: 30/64 mm
Thickness plate excl. pins: 10 mm
Handle + extension: 200 mm
Handles (black): 80 x 68/34 mm
